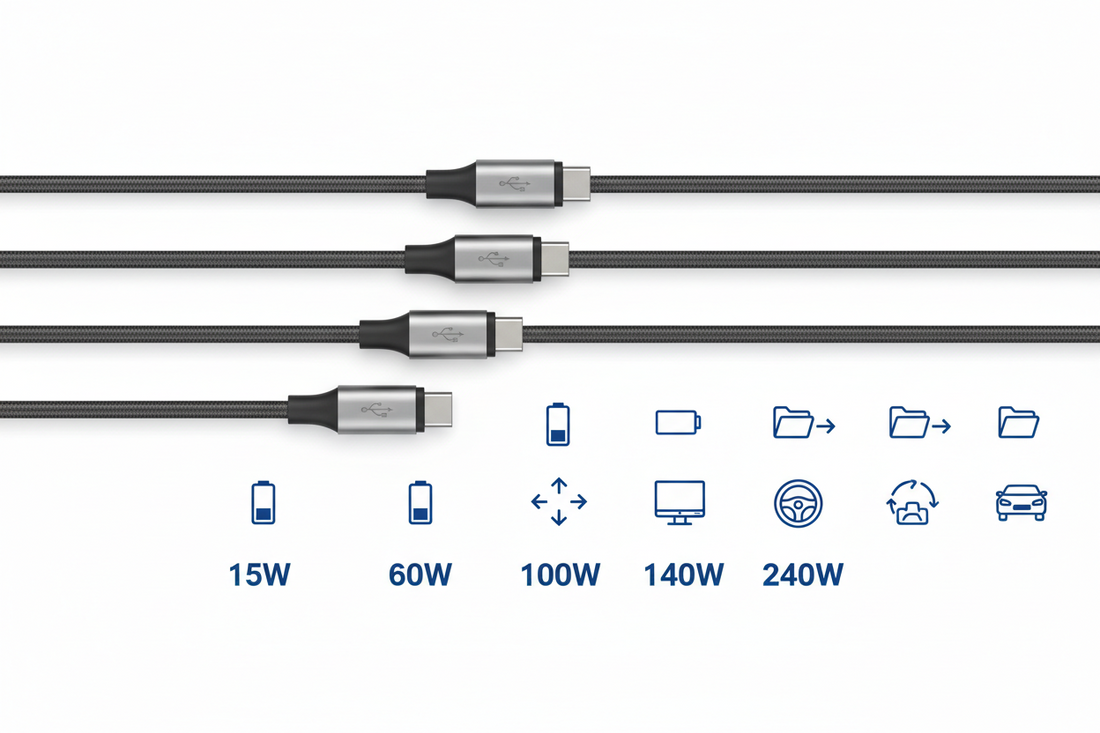

USB-C charging cables may look almost identical from the outside, but their performance can be completely different.
One cable may support only basic phone charging. Another can deliver up to 60W for tablets and selected laptops, while a higher-rated cable may support 100W, 140W, or even 240W. Some USB-C cables can also transfer files, connect to in-car systems, or output video, while others are designed primarily for charging.
So what actually separates fast charging from slow charging? Why do cable labels show different wattages? Is a 240W cable always faster than a 60W cable? And why can some charging cables also function as data cables?
The most important principle is simple:
Charging speed is not determined by the cable alone. It depends on the charger, cable, device, and charging protocol working together.
Understanding this relationship helps consumers choose the right product and allows distributors to avoid misleading specifications, unnecessary returns, and incompatible inventory.
What Is the Difference Between Fast Charging and Slow Charging?
Charging power is measured in watts. The basic formula is:
For example:
5V × 1A = 5W
5V × 3A = 15W
20V × 3A = 60W
20V × 5A = 100W
28V × 5A = 140W
36V × 5A = 180W
48V × 5A = 240W
I
n general, fast charging supplies more power to a compatible device during suitable stages of the charging process. Slow charging delivers power at a lower rate.
However, this does not mean a device receives the highest possible wattage from the moment it is connected until it reaches 100%.
Modern devices continuously manage charging according to factors such as:
Battery level
Battery temperature
Device temperature
Charger capability
Cable capability
Charging protocol
Current device activity
Battery protection settings
A phone may accept relatively high power when its battery level is low, then gradually reduce the charging rate as the battery approaches full capacity.
This is why the wattage shown on a cable or charger should normally be understood as a maximum supported level, not a constant output.
How Does Fast Charging Work?
Fast charging is a coordinated process rather than a charger simply forcing more power into a battery.
A typical charging sequence works like this:
he device is connected to the charger.
The charger detects the connected device.
The device communicates its power requirements.
The system identifies the cable’s power capability.
The device and charger negotiate a suitable voltage and current.
Charging power is adjusted as battery level and temperature change.
When the charger, cable, and device support compatible charging standards, they can negotiate a higher power level. If one part of the system does not support the required specification, charging may fall back to a lower level.
This communication is one reason that replacing only the cable does not always make a device charge faster.
What Determines the Actual Charging Speed?
Four major components determine the final result.
1. The Device
Every phone, tablet, laptop, power bank, and other electronic device has a maximum charging input.
If a smartphone accepts a maximum of 30W, connecting it to a 240W charger with a 240W cable will not normally make it charge at 240W. The phone’s charging-management system requests only the power it is designed to accept.
A high-power cable offers a greater capacity ceiling, but it does not override the device’s limit.
2. The Charger
The charger must be able to provide the required power and support a compatible charging protocol.
If a charger has a maximum output of 20W, replacing a 60W cable with a 240W cable will not turn it into a 100W or 240W charger.
Multiport chargers require additional attention. A charger may advertise a high total output, but that power can be divided across several ports when multiple devices are connected.
For example, a charger advertised as 200W may refer to the combined output of all ports rather than the output available from a single USB-C connection.
3. The Cable
The cable must safely carry the negotiated voltage and current.
Its performance is influenced by:
Conductor size
Conductor material
Internal resistance
Connector construction
Welding and assembly quality
Cable length
Insulation
Shielding
Temperature control
E-Marker configuration
A poorly designed cable may cause voltage loss, unstable charging, excessive heat, or failure to reach the intended power level.
A USB-C connector alone does not prove that a cable can safely support high-power charging.
4. The Charging Protocol
The charger and device must understand each other.
Relevant standards and technologies may include:
USB Power Delivery
PPS
Qualcomm Quick Charge
Brand-specific fast-charging systems
A charger may have enough theoretical power, but if it does not support the protocol required by the device, charging can fall back to a lower rate.
This is why wattage alone is not enough when evaluating a charging product.
Why Are Some USB-C Cables Rated at 60W?
A common 60W USB-C cable is typically associated with a maximum operating point of 20V and 3A:
A properly designed 60W cable can meet the needs of many:
Smartphones
Tablets
Power banks
Portable gaming devices
Small electronic accessories
Selected lightweight laptops
A 60W cable may be the most practical option when the target products do not require more power.
Its potential advantages include:
Lower manufacturing cost
Lighter construction
Good coverage for common mobile devices
Less unnecessary specification for basic applications
Easier positioning for price-sensitive retail channels
However, a 60W cable cannot enable a laptop that requires more than 60W to charge at its full supported rate.
The laptop may charge more slowly, maintain its current battery level, or continue losing power during intensive use.
Why Are Some USB-C Cables Rated at 100W?
The earlier USB Power Delivery maximum was commonly associated with 100W:
Moving from 3A to 5A requires a cable designed for the higher current. Applicable 5A USB-C cables also require electronic identification so that connected devices can recognize the cable’s current-handling capability.
A 100W cable may be suitable for:
Higher-powered tablets
USB-C laptops
High-capacity power banks
Docking stations
Monitors with USB-C power delivery
Other compatible high-power devices
The cable still does not guarantee 100W charging. The charger and device must also support an appropriate 100W configuration.
Where Do 140W, 180W, and 240W Come From?
USB Power Delivery Revision 3.1 introduced Extended Power Range, commonly known as EPR.
It added higher fixed-voltage levels:
28V for power levels up to 140W
36V for power levels up to 180W
48V for power levels up to 240W
At 5A, these levels can produce:
According to the USB Implementers Forum, USB PD 3.1 expanded USB-C power delivery from the earlier 100W limit to a maximum of 240W through compliant USB Type-C cables and connectors. Further technical information is available in the USB-IF overview of USB Power Delivery.
These higher power levels can support products that previously needed separate power connectors or larger proprietary adapters, including selected:
High-performance laptops
Monitors
Workstation-class equipment
Docking systems
Printers
Higher-powered consumer electronics
However, 240W charging requires a complete compatible system. A 240W cable alone cannot upgrade a charger or device that does not support USB PD EPR.
What Is a 220W USB-C Cable?
Consumers may encounter cables advertised as 220W, but this figure requires closer examination.
220W is not one of the typical fixed USB PD power levels. The commonly referenced USB PD EPR levels are 140W, 180W, and 240W.
A 220W product label could refer to:
A proprietary charging implementation
A manufacturer-specific calculation
The combined output of multiple ports
A charger’s total system output
A rounded or marketing-oriented number
A specification that is not based on standard USB PD fixed levels
This does not automatically mean that every 220W claim is false. It means buyers should ask what the number actually represents.
Before purchasing or distributing a product labelled 220W, confirm:
Is 220W available through one cable or several ports?
What are the maximum voltage and current?
Does it support USB PD 3.1?
Is it an EPR cable?
Does it contain a correctly configured E-Marker?
Which chargers and devices can use this power?
Is the figure supported by test documentation?
Is it a charger rating rather than a cable rating?
A large wattage printed on packaging is not enough to establish actual compatibility or performance.
Is a 240W Cable Always Faster Than a 60W Cable?
No. It depends on the complete charging system.
Consider a smartphone that accepts a maximum of 30W:
| Charger | Cable | Device limit | Maximum practical result |
|---|---|---|---|
| 30W | 60W | 30W | Up to 30W |
| 100W | 60W | 30W | Up to 30W |
| 100W | 240W | 30W | Up to 30W |
| 240W | 240W | 30W | Up to 30W |
In every example, the device remains the limiting factor.
A 240W cable can still provide value because it may:
Support a wider range of devices
Work with compatible high-power laptops
Provide capacity for future equipment
Reduce the need to carry separate cables
Offer greater versatility across different charging scenarios
However, it should not be marketed as making every phone or tablet charge faster.
The actual charging speed is determined by the lowest compatible limit among the charger, cable, device, and protocol.
What Is an E-Marker Chip?
An E-Marker is an electronic component built into applicable USB-C cables. It communicates information about the cable’s capabilities to connected equipment.
Depending on the cable and specification, this information may include:
Supported current
Power rating
Cable type
Certain data capabilities
Identification details
Supported operating modes
An E-Marker can be understood as part of the cable’s electronic identification system.
It is especially important when a USB-C system needs to determine whether the cable can support 5A or an applicable higher-power configuration.
Without reliable identification, the charger and device cannot safely assume that every USB-C cable is capable of carrying the same current.
However, an E-Marker alone does not make a cable safe or high quality.
Overall cable performance still depends on:
Correct chip configuration
Sufficient conductor size
Reliable connector assembly
Proper insulation
Temperature performance
Voltage-drop control
Strain relief
Manufacturing consistency
A low-quality cable does not become a reliable high-power cable simply because it contains a chip.
Why Can Some Cables Charge and Transfer Data?
To understand the difference between a charging cable and a data cable, it helps to look inside.
Depending on its design, a USB cable may contain:
Power conductors
Ground conductors
Basic data wires
High-speed differential pairs
Configuration channels
Shielding
Electronic identification components
Power and data use different internal connections.
A cable that includes the required power conductors may charge a device. To transfer files or support other data functions, it must also include the appropriate data conductors and internal configuration.
This is why one cable can charge a phone and transfer photos, while another cable with the same external connector may be suitable primarily for charging.
“Supports Data” Does Not Always Mean High-Speed Data
Data capability is not simply a yes-or-no feature.
USB-C cables may support very different levels of functionality, such as:
Basic USB 2.0 data transfer
Faster USB 3.x data transfer
USB4 performance
Display output
Docking-station connectivity
Charging with limited data capability
Charging without the data function needed for a particular application
A cable may successfully transfer a small file while being unsuitable for external storage at high speed. Another may charge a laptop but fail to output video to a monitor.
Professional buyers should ask for a specific data-transfer standard or tested speed rather than accepting the general statement “supports data.”
Why Do Manufacturers Produce Charging-Only Cables?
Charging-only or charging-focused cables can exist for several commercial and technical reasons:
Lower manufacturing cost
Fewer internal conductors
Simpler construction
Lighter cable design
A product intended only for power
Target devices that do not need data
Promotional use where basic charging is sufficient
A charging-focused cable is not necessarily defective. The problem occurs when its function is not clearly disclosed.
Consumers may assume that any USB-C cable can:
Transfer photos
Connect a phone to a computer
Work with CarPlay
Work with Android Auto
Connect external storage
Output video
Those functions require the correct internal configuration and compatible equipment.
Why Does a Cable Charge but Fail to Transfer Files?
If a device charges successfully but is not recognized by a computer, possible causes include:
The cable does not contain the required data wires
The cable supports only limited data functionality
The internal data conductors are damaged
The connector is not making reliable contact
The device port is damaged or contaminated
The device has not enabled data access
The cable cannot support the required data standard
The requested function requires more than basic USB data
Testing with a confirmed data-capable cable can help determine whether the problem is related to the cable or the device.
Does a Thicker Cable Always Support More Power?
Not necessarily.
Larger conductors can reduce resistance and help manage voltage loss and heat. However, the visible thickness of a cable includes more than its electrical conductors.
The outer diameter may also include:
Insulation
Braided material
Shielding
Fillers
Reinforcement
Decorative layers
A cable can look thick while using relatively small internal power conductors. A thinner cable may use better conductor materials and more efficient internal construction.
Cable quality should be evaluated using information such as:
Maximum voltage and current
Conductor specifications
E-Marker configuration
Voltage-drop testing
Temperature-rise testing
Connector quality
Bending durability
Relevant compliance information
Appearance alone cannot confirm electrical performance.
Does Cable Length Affect Charging Speed?
Cable length can affect power delivery.
When conductor material and cross-sectional area remain the same, a longer cable generally has greater electrical resistance. Higher resistance can produce more voltage loss and heat.
That does not mean every long cable charges slowly. It means longer cables require more careful engineering.
A well-designed six-foot cable can support reliable charging if its conductors, connectors, and internal structure are matched to the intended power level.
For buyers, a long cable advertised with high charging power should be evaluated for:
Conductor size
Voltage drop
Temperature rise
Connector construction
Flexibility
Bending resistance
Performance at the full advertised length
Manufacturers should not simply extend a short cable design and assume it will maintain identical electrical performance.
Does Fast Charging Damage the Battery?
Fast charging is often blamed for battery degradation, but the relationship is more complicated.
Compatible devices use battery-management systems to control voltage, current, and temperature. They do not normally accept peak power throughout the entire charging cycle.
A simplified charging pattern may look like this:
Higher power is accepted when the battery level is relatively low.
Power is adjusted as battery temperature changes.
Current is reduced as the battery approaches full capacity.
Charging slows significantly near 100%.
The system stops or maintains the battery after it is full.
Heat is an important factor in battery aging. Users should therefore consider more than whether charging is described as “fast.”
Relevant factors include:
Charger quality
Cable quality
Device temperature
Ambient temperature
Battery age
Charging while gaming or performing intensive tasks
Compatibility with the device
Battery protection settings
It would be inaccurate to claim that all fast charging damages batteries. It would also be inaccurate to promise that charging conditions have no effect on long-term battery health.
The best approach is to use compatible, properly designed charging equipment and avoid unnecessary heat.
How Should You Choose a USB-C Cable?
The right cable depends on the intended device and use case.
For Smartphones
Confirm:
Maximum phone charging power
Supported charging protocol
Connector type
Required cable length
Whether data transfer is needed
Whether it must support CarPlay or Android Auto
A 240W cable may work with a phone, but it is not necessary if the phone has a much lower charging limit and the cable will never be used with higher-power equipment.
For Tablets and Laptops
Confirm:
Original adapter wattage
USB PD support
Whether the device requires more than 60W
Whether a 5A cable is required
E-Marker configuration
Data-transfer requirements
Display-output requirements
Docking-station compatibility
Cable length
For a laptop, selecting a cable with insufficient power capacity can result in slower charging or battery loss during demanding use.
For Distributors and Retailers
Professional buyers should verify:
Whether the wattage claim has a technical basis
Maximum voltage and current
Supported charging protocols
E-Marker configuration
Data-transfer specification
Connector and cable materials
Bending test results
Cable length
Packaging accuracy
Target-device compatibility
Production consistency
OEM and ODM options
Clear specifications help reduce customer confusion and protect a distributor from selling a product that does not meet the intended use.
When Charging Performance Becomes Standard, How Can a Cable Stand Out?
As USB-C becomes more common, charging cables are beginning to look increasingly similar.
Many products use:
Black or white cable jackets
Standard plastic connectors
Similar braided exteriors
Similar wattage claims
Similar retail packaging
For distributors and retailers, this creates a difficult market. When products look interchangeable, consumers may compare only price.
The result is often a race toward lower margins.
However, differentiation should not require sacrificing charging performance. A cable should not become less practical simply because it is designed as a gift or visual accessory.
The better approach is to establish reliable charging performance first, then create value through design, craftsmanship, identity, and retail presentation.
Enerzoom: Creative Design Without Compromising Charging Performance
Enerzoom develops USB-C charging cables that combine practical performance with distinctive visual design.
Instead of treating the cable as an accessory that should disappear underneath a desk, Enerzoom turns the connector into a recognizable part of the product.
Our collections include:
Twelve Zodiac designs
Pet-inspired cables
Basketball, football, American football, baseball, and tennis designs
Halloween characters
Christmas designs
City and souvenir collections
Perfume bottle-inspired concepts
Custom brand and IP projects
Depending on the model and project requirements, Enerzoom cables can offer:
Up to 240W PD 3.1 charging
E-Marker chip support
USB-C to USB-C connectivity
Data functionality for compatible product specifications
Zinc-alloy connector housings
Durable nylon-braided cable construction
Multiple cable lengths and power options
Up to 50,000 bending cycles for selected collections
Actual charging power still depends on the connected charger, device, cable specification, and supported protocol.
Enerzoom does not use design as a substitute for performance. The goal is to maintain the practical purpose of a charging cable while giving retailers and consumers something more distinctive than a standard black or white accessory.
More Than a Printed Logo
Product differentiation should go beyond printing a logo on an ordinary connector.
Enerzoom applies different decorative and manufacturing techniques across its collections, including:
Three-dimensional sports-ball shapes
Realistic spherical textures
3D relief printing
Precision curved-surface printing
Hand-painted gradient effects
Recessed micro-inlay details
High-precision metal micro-casting
Three-layer crystal-clear coatings
Seasonal characters and gift-ready packaging
These processes help transform the connector itself into part of the product’s identity.
A basketball cable can appeal to a sports fan. A Zodiac cable can become a personalized birthday gift. A city-themed cable can offer souvenir stores an alternative to conventional magnets and keychains.
The charging function remains essential, but the product gains a clearer reason to be selected, displayed, and given as a gift.
What Does This Mean for Distributors?
Enerzoom’s design approach can help distributors and retailers:
Reduce direct competition with generic cables
Create stronger shelf and counter displays
Enter both electronics and gift channels
Develop seasonal collections
Target sports, pet, Zodiac, and travel audiences
Add emotional value to a practical product
Create more content for social media and product marketing
Develop exclusive products for specific markets
A distinctive cable is easier to position around an occasion, interest, or customer identity. This gives retailers more selling points than wattage and price alone.
OEM and ODM USB-C Cable Development
Enerzoom also supports OEM and ODM projects for brands, distributors, wholesalers, and retail groups.
Available development options can include:
60W, 100W, and higher-power solutions
Different cable lengths
Charging and data configurations
Custom 2D and 3D connectors
Custom shapes
Colors and materials
Brand logos
Themed graphics
Private-label packaging
Gift-box development
Sampling
Mass-production support
The appropriate specification should be selected according to the target device, required charging power, data needs, retail channel, budget, and product positioning.
Customers do not need to choose between performance and creativity. The cable’s electrical design and external appearance can be developed as parts of the same market-ready product.
Frequently Asked Questions
Is a 240W cable always faster than a 60W cable?
No. The actual charging speed is limited by the charger, cable, device, and supported protocol. A phone that accepts 30W will not normally charge at 240W simply because it is connected to a 240W cable.
Can I use a 240W USB-C cable with a phone?
Generally, a correctly designed USB-C cable can be used with compatible lower-power devices. The phone requests the power it supports. Compatibility should still be confirmed for the particular device, charger, cable, and charging protocol.
Is 220W a standard USB PD power level?
220W is not one of the common USB PD fixed power levels. A 220W claim should be checked to determine whether it refers to a proprietary system, combined charger output, or another method of calculation.
Does every USB-C cable transfer data?
No. USB-C describes the connector shape, but cable functionality varies. Buyers should verify whether the cable supports data and at what speed.
What does an E-Marker chip do?
It provides connected equipment with information about the cable’s capabilities. It is particularly important for applicable 5A and higher-power USB-C configurations.
Can a charging cable also be a data cable?
Yes. The cable must include the appropriate power and data conductors, internal configuration, and shielding required for its claimed functions.
Does a thicker cable always support more power?
No. Visible thickness includes insulation, braiding, fillers, and other materials. Electrical performance depends on the internal conductors and overall cable design.
Why is my fast-charging cable charging slowly?
Possible causes include a low-power charger, device limitations, protocol incompatibility, temperature control, cable resistance, connector problems, or power being shared across multiple charger ports.
Conclusion
Fast charging and slow charging are primarily distinguished by the amount of power actually delivered to a device, but that power is not determined by the cable alone.
The charger must provide it. The cable must carry it. The device must accept it. All components must support a compatible charging protocol.
A 60W cable can be an excellent choice for phones, tablets, and selected laptops. A 100W or 240W cable provides a higher power ceiling for compatible equipment. A product advertised as 220W deserves closer examination because 220W is not a typical USB PD fixed power level.
Charging and data transmission are also separate capabilities. A cable can support both when it contains the required internal conductors and configuration, but the USB-C connector itself does not guarantee data speed, video output, or high-power charging.
As cable performance becomes increasingly standardized, product design becomes a more important source of differentiation.
Enerzoom combines USB-C charging technology with themed designs, detailed craftsmanship, durable materials, and gift-ready presentation—creating cables that remain efficient and practical while offering something visually different.
Fast Where It Matters. Different Where It Counts.
